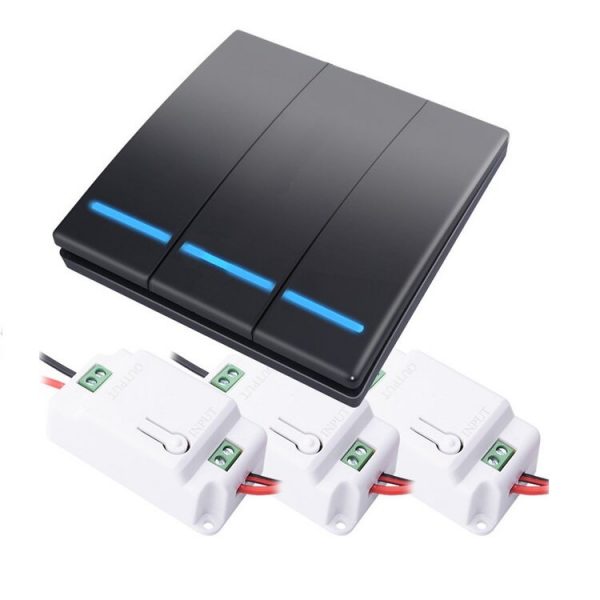

SMATRUL Black 433Mhz Smart Push 3Gang Wireless Switch Light +3 RF Remote Control

Description

Controller specification:1, working voltage: AC85-240V 60HZ/50HZ2, working frequency: 433.92MHZ3, the total load power: 1000W4, receiving sensitivity: -108dBM5, working method: wireless remote control6, coding method: learning code7, modulation method: ASK8, working temperature: -10 deg C ~ +70 deg C9, size: 72 x 38 x 26 (mm)Wireless switchspecification:1, working voltage: DC 3V2, working frequency: 433.92MHZ3. Transmitting power: 10mW4. Remote control distance: 50 meters (indoor distance)5, working method: wireless remote control6, coding method: learning code7, modulation method: ASK8, working temperature: -10 deg C ~ +70 deg C9, size: 86 x 86 (mm)10,Color:Black,3gangPairing signal:1. Press and hold the controller for 3 seconds to enter the code matching mode (the code indicator light flashes 5 times).At this time, press the wireless switch 2 times and wait for 2 seconds. The code is successful (the default is always on);Clear the signalPress and hold the controller for 10 seconds to clear the code (the code indicator flashes 10 times);NOTE:1.One controller can be equipped with 15 switches, one switch can be equipped with many controllers2. Do not operate with power. Turn off the power supply and operate it. If the test is confirmed to be correct, use it under the guidance of a professional electrician.3. When the voltage of the remote control is insufficient, please change the battery in time (the remote control distance becomes closer when the remote control battery volta
